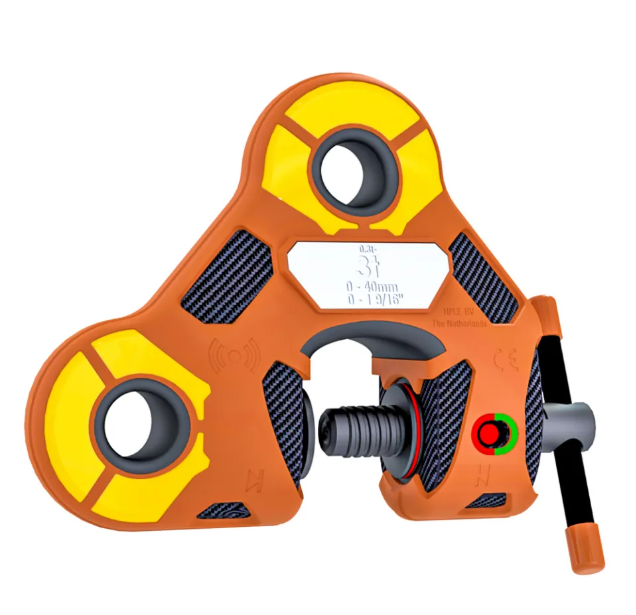

Gladiator — All-direction lifting clamp
Lifting clamps 3t–6t · Ultra-light and incredibly strong carbon fibre composite body — a high-performance safety lifting clamp for lifting in all directions.
Lifting clamps 3t–6t
For lifting, turning (180°), moving and transporting plate material, beams and constructions — horizontally and vertically.
- Ultra-light and incredibly strong carbon fibre composite body
- Horizontal and vertical lifting — fitted with both lifting eyes
- Better grip on the clamp while attaching it to the plate
- Maximum WLL indicator, clearly visible on both lifting eyes
- Safe-lift indicator ensuring sufficient clamping force
- Main material
- Carbon fibre composite
- Standards
- EN 13155
- Packaging unit (PU)
- Pieces
- Content of packaging unit
- 1
- Temperature range
- -40 °C / 104 °F up to +80 °C / 176 °F
Select model
All-direction safety lifting clamp
- Article number
- 2020491
- ERP codes
- D093615X · GLADIATOR3 · T-2020491
- WLL
- 3 t (3000 kg)
- For material
- Normal max. 37 HRC
- Jaw opening width
- 35 mm
- Dimension A
- 30 mm
- Net weight
- 3.6 kg
- Colour
- Yellow
Gladiator — lifting clamps for all directions
For lifting, turning (180°), moving and transporting plate material, beams and constructions in horizontal and vertical position. Available for the following materials:
- Normal — Material with a maximum hardness of 37 HRC.
- Stainless steel — Material with a maximum hardness of 37 HRC.
- Hard — Material with a maximum hardness of 47 HRC (for example Hardox 400 and 500).
- Non-marking — Scratch and dent free. All types of steel or stainless steel (contact us for this option).
High performance — features
Made from carbon fibre composite materials
By using carbon fibre composites we produce ultra-light lifting clamps that are at the same time incredibly strong, corrosion resistant and highly durable.
Fitted with a horizontal and a vertical lifting eye
This design makes the clamps suitable for lifting, turning (180°), moving and transporting plate material, beams and constructions in both horizontal and vertical position.
Safe-lift indicator guaranteeing full safety
When the clamping screw is tightened, the safety indicator moves from left (red) to right (green). When the indicator is in the green zone, there is sufficient clamping force to perform a safe lift.
Breaking load limit of 4× WLL
Tested in horizontal and vertical position; 2,000,000 load cycles.
For materials with a surface hardness up to 364 HV
And a tensile strength up to 1200 N/mm². No minimum WLL required.
Individually serialised
The serial number and the date of the proof load test are marked on the body. Instructions for use and a test certificate are supplied with every clamp; a service and repair manual is available on request.
Traceable, genuine HPLE parts
All load-bearing parts carry a traceability code and the HPLE logo. Each clamp is individually tested at twice the maximum working load, including certification, and is fitted with RFID technology.
Gladiator AD standards
- European standard EN 13155
- US standard ASME B30.20, design category B, service class 4
- US standard ASME BTH-1
- Australian standard 4991
- European Machinery Directive 2006/42/EC
Product benefits
Modular system
Individual parts are easy to replace. If parts get damaged you do not need to replace the whole unit — this minimises purchase costs and increases safety.
Horizontal and vertical use
Improved functionality: the equipment is tested for use in both horizontal and vertical direction.
Lightweight
For simple and ergonomic handling — improved comfort and ease of use during operation.
Long service life
Increased cost-effectiveness: products are tested over extended periods of use to deliver a long-life solution.
High-performance lifting equipment
Made from steel and carbon fibre composites — ultra-light, incredibly strong, corrosion resistant and highly durable.
Safe-lift indicator
When the safe-lift indicator is in the green zone, there is sufficient clamping force to perform a safe lift.
Variant information
| Article number | Article name | WLL t | For material | WLL kg | Dimension A | Jaw opening width | Dimension B | Dimension C | Dimension D | Dimension E | Dimension F | Dimension G | Dimension H | Net weight | Colour |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2020491 · D093615X · GLADIATOR3 · T-2020491 | 3t AD Gladiator clamp | 3 t | Normal max. 37 HRC | 3000 kg | 30 mm | 35 mm | 203 mm | 96 mm | 126 mm | 62 mm | 263 mm | 32 mm | 80 mm | 3.6 kg | Yellow |
| 2020492 · D093622X · T-2020492 | 3t AD-H Gladiator clamp | 3 t | Hard max. 47 HRC | 3000 kg | 30 mm | 35 mm | 203 mm | 96 mm | 126 mm | 62 mm | 263 mm | 32 mm | 80 mm | 3.6 kg | Yellow |
| 2020493 · D093624X · T-2020493 | 3t AD-S Gladiator clamp | 3 t | Stainless steel max. 37 HRC | 3000 kg | 30 mm | 35 mm | 203 mm | 96 mm | 126 mm | 62 mm | 263 mm | 32 mm | 80 mm | 3.6 kg | Yellow |
| 2020494 · D093626 | 3t ADNM Gladiator clamp | 3 t | Non-marking | 3000 kg | 30 | — | 203 | 96 | 126 | 62 | 263 | 32 | 80 | 3.7 kg | Yellow |
| 2020499 · D093621X · GLADIATOR6 · T-2020499 | 6t AD Gladiator clamp | 6 t | Normal max. 37 HRC | 6000 kg | 38 mm | 50 mm | 275 mm | 125 mm | 172 mm | 65 mm | 335 mm | 57 mm | 126 mm | 9.7 kg | Brown |
| 2020500 · D093623X · T-2020500 | 6t AD-H Gladiator clamp | 6 t | Hard max. 47 HRC | 6000 kg | 38 mm | 50 mm | 275 mm | 125 mm | 172 mm | 65 mm | 335 mm | 57 mm | 126 mm | 9.7 kg | Brown |
| 2020501 · D093625X · T-2020501 | 6t AD-S Gladiator clamp | 6 t | Stainless steel max. 37 HRC | 6000 kg | 38 mm | 50 mm | 275 mm | 125 mm | 172 mm | 65 mm | 335 mm | 57 mm | 126 mm | 9.7 kg | Brown |
| 2020502 · D093627 | 6t ADNM Gladiator clamp | 6 t | Non-marking | 6000 kg | 38 | — | 275 | 125 | 172 | 65 | 335 | 57 | 126 | 9.8 kg | Brown |
